introduction hashicorp-vault

introduction hashicorp-vault

vault 是一個管理敏感訊息的系統
功能如下

  • Manage static secrets
  • Manage certificates
  • Manage identities and authentication
  • Manage 3rd-party secrets
  • Manage sensitive data
  • Support regulatory compliance

另外支援 plugin 達成以下功能

  • authentication plugins that handle authentication flows and control client access to Vault.
  • general secret plugins that generate, store, manage, or transform sensitive information.
  • database secret plugins that manage dynamic credentials that clients use to access database data.

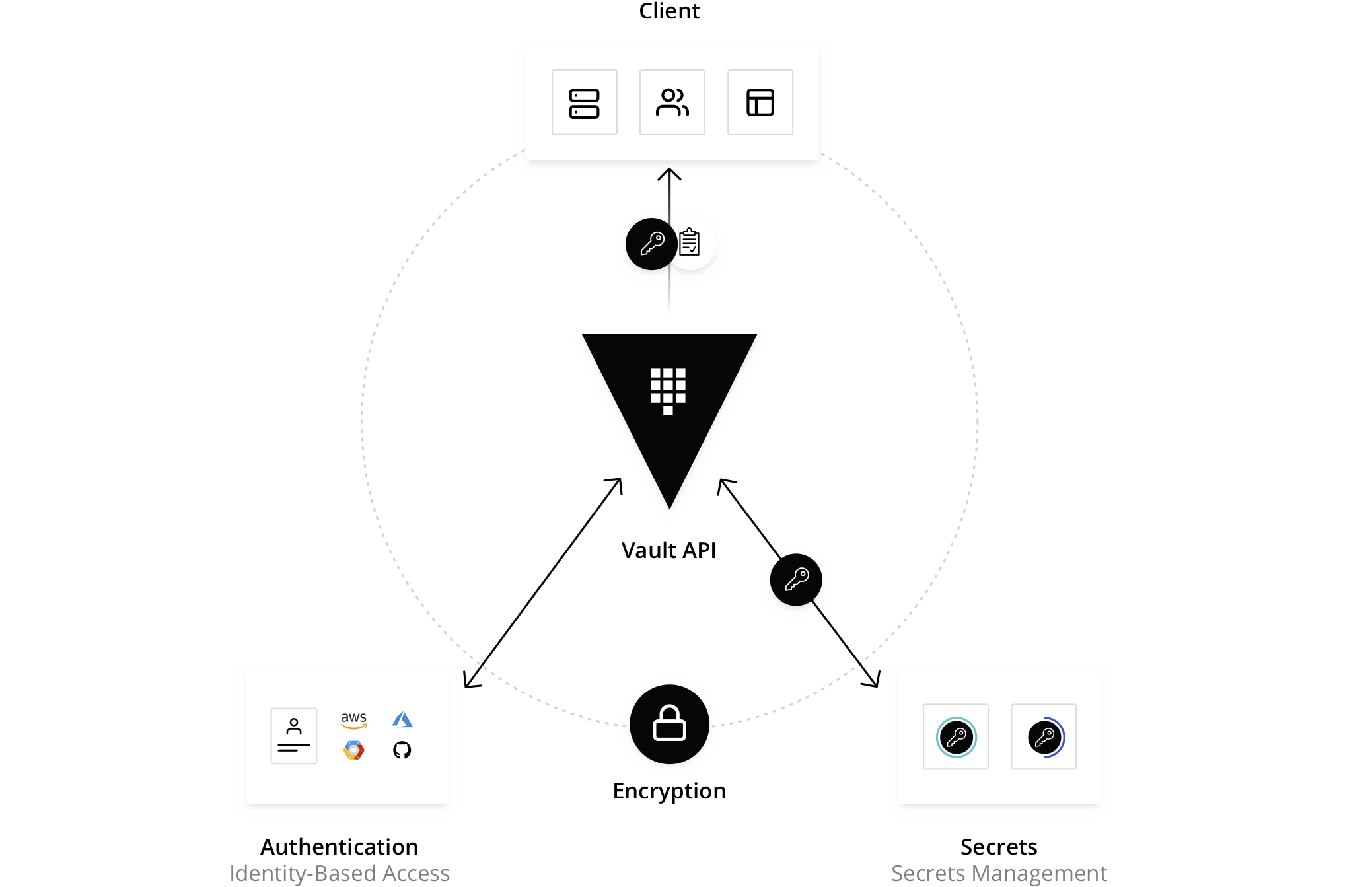

atchitecture

  • Clients authenticate with manually generated tokens, protocols like LDAP, or third-party providers like Azure and AWS.
  • Vault generates an access token that links the client request to an internal entity and applicable security policies.
  • Clients interact with secrets and encryption operations based on resource paths mounted in Vault.
  • Vault authorizes the client request against policies set on the resource path and grants or denies access accordingly.

缺點

Vault is robust, powerful, and flexible. But it can also be overwhelming if you have limited or simple secret management needs.

how to vault store data

Storage type HA support Description
Integrated YES The “built-in” storage option that encrypts and replicates data across an operating Vault cluster.
File system NO Persists data to the local file system on the machine running Vault.
External MAYBE A durable third-party storage system like Azure, AWS, Google Cloud, or MySQL.
In-memory NO Persists data entirely in-memory on the machine running Vault for development and experimentation.

getting start vault

Install Vault to Kubernetes with Integrated Storage

https://developer.hashicorp.com/vault/tutorials/kubernetes-introduction/kubernetes-minikube-raft#kubernetes-minikube-raft

1
2

helm repo add hashicorp https://helm.releases.hashicorp.com
helm repo update

create file

helm-vault-raft-values.yml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

cat > helm-vault-raft-values.yml <<EOF
server:
   affinity: ""
   ha:
      enabled: true
      raft:
         enabled: true
         setNodeId: true
         config: |
            cluster_name = "vault-integrated-storage"
            storage "raft" {
               path    = "/vault/data/"
            }

            listener "tcp" {
               address = "[::]:8200"
               cluster_address = "[::]:8201"
               tls_disable = "true"
            }
            service_registration "kubernetes" {}
EOF

install

1

helm install vault hashicorp/vault --values helm-vault-raft-values.yml

Initialize

1
2
3
4

kubectl exec vault-0 -- vault operator init \
    -key-shares=1 \
    -key-threshold=1 \
    -format=json > cluster-keys.json

核心概念：金鑰份額與門檻 (Shares and Threshold) 這是 Vault 安全模型的核心。想像一個需要多把鑰匙才能打開的實體銀行保險箱。 key-shares: 相當於你總共複製了幾把鑰匙。 key-threshold: 相當於你需要同時插入幾把鑰匙才能打開保險箱。 教學中的設定 (-key-shares=1, -key-threshold=1) 意義: 產生一把「解封金鑰」，而解封 Vault 也只需要這一把鑰匙。 優點: 在教學、開發或測試環境中非常方便。你只需要管理一個金鑰，操作簡單快速。 缺點: 安全性較低。這構成了一個單點故障。任何能拿到這個金鑰的人或系統，都可以獨立解封 Vault。 生產環境中的典型設定 (例如: -key-shares=5, -key-threshold=3) 意義: Vault 會產生 5 把不同的「解封金鑰」。你必須湊齊其中任意 3 把，才能解封 Vault。 優點: 安全性極高。你必須洩漏 3 把金鑰才會導致 Vault 被解封。你可以將這 5 把金鑰分給 5 位不同的高階主管或系統，任何單一的人或系統都無法獨自解封 Vault，大大降低了風險。

Unseal and create cluster

1
2
3
4
5
6
7
8

VAULT_UNSEAL_KEY=$(jq -r ".unseal_keys_b64[]" cluster-keys.json)
kubectl exec vault-0 -- vault operator unseal $VAULT_UNSEAL_KEY
kubectl exec -ti vault-1 -- vault operator raft join http://vault-0.vault-internal:8200
kubectl exec -ti vault-2 -- vault operator raft join http://vault-0.vault-internal:8200


kubectl exec -ti vault-1 -- vault operator unseal $VAULT_UNSEAL_KEY
kubectl exec -ti vault-2 -- vault operator unseal $VAULT_UNSEAL_KEY

Set a secret in Vault

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

# get root token
jq -r ".root_token" cluster-keys.json

# start interative shell
kubectl exec --stdin=true --tty=true vault-0 -- /bin/sh

# login
vault login

# Enable an instance of the kv-v2 secrets engine at the path secret
# 在 Vault 中啟用一個秘密儲存引擎，這個引擎的類型是「鍵值(Key-Value)儲存的第 2 版」，並且將這個引擎掛載 (mount) 到路徑 secret/ 上。

vault secrets enable -path=secret kv-v2

# Create a secret
vault kv put secret/webapp/config username="static-user" password="static-password"

# verify
vault kv get secret/webapp/config

工具/操作 您輸入的路徑 Vault 內部實際操作的路徑 為什麼？ CLI (vault kv …) secret/webapp/config secret/data/webapp/config 為了方便。CLI 做了抽象化，隱藏了細節。 Policy (path) secret/data/webapp/config secret/data/webapp/config 為了精確。Policy 必須明確指定 API 路徑。 metadata (path) secret/metadata/webapp/config secret/metadata/webapp/config 為了精確。Policy 必須明確指定 API 路徑。

Configure Kubernetes authentication

https://developer.hashicorp.com/vault/tutorials/kubernetes-introduction/kubernetes-minikube-raft#launch-a-web-application

1
2
3
4

kubectl exec --stdin=true --tty=true vault-0 -- /bin/sh
vault auth enable kubernetes
vault write auth/kubernetes/config \
    kubernetes_host="https://$KUBERNETES_PORT_443_TCP_ADDR:443"

add policy

1
2
3
4
5

vault policy write webapp - <<EOF
path "secret/data/webapp/config" {
  capabilities = ["read"]
}
EOF

create auth role

1
2
3
4
5

vault write auth/kubernetes/role/webapp \
        bound_service_account_names=vault \
        bound_service_account_namespaces=default \
        policies=webapp \
        ttl=24h

Mount Vault secrets through Container Storage Interface (CSI) volume

alternative

https://infisical.com/blog/hashicorp-vault-alternatives
